Running Linux on White Box Switches

Slide 1

This is the extended version of my presentation for the Triangle Linux Users Group. In this presentation, I introduce ONIE and Cumulus Linux. The source code for all of my demos is on Github, so you can download and run through my examples yourself!

Slide 2

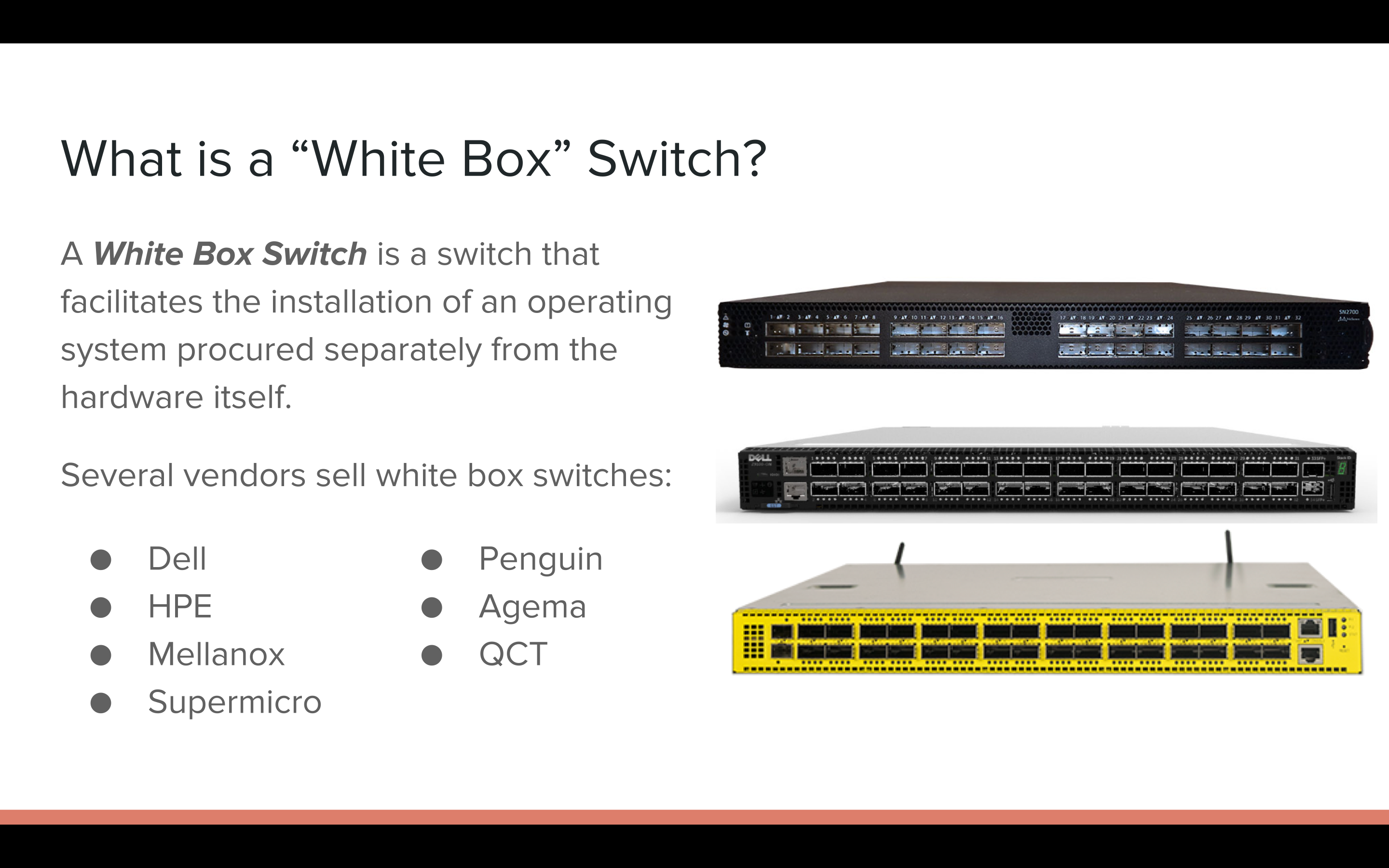

I define White Box switches as being "switches that facilitate the installation of an operating system procured separately from the hardware itself". This definition doesn't sound particularly impressive to people who come from the Linux world because they take for granted the ability to buy a PC or a server and put Ubuntu or Red Hat on it. However, being able to install an OS on a managed switch in a data center is a relatively new development that fundamentally alters the way that these devices are sold, marketed, and procured.

Traditionally, switches are sold as black boxes. When someone refers to a switch as a "Cisco Switch", they are usually referring to the hardware and the software as an inseperable bundle. While it may be possible to flash the firmware and install an operating system on such a device, the key feature of these White Box switches is that this process of installation and re-installation is painless and standardized much like network installation via protocols like PXE.

It's worth mentioning that these devices called switches are more appropriately called "multilayer switches" in that they can do the work commonly associated with routers.

Slide 3

Network Operating Systems (NOS) for white box switches come in many different flavors, some of which are vastly different from the experience one would have on a Cisco or Arista box.

Cumulus Linux, for example, seeks to create a pure Linux experience on the switch. Rather than having to use a modal CLI to inject commands directly into the hardware accelerated ASIC, Cumulus Linux transparently translates the Linux kernel networking state such as devices, IP addresses, and forwarding tables to the ASIC in the background. This means that if you are already using Linux on your servers, there is a single interface across all devices on network.

Big Switch's Switch Light OS is an application that runs on White Box switches and exposes an API to their controller service, Big Fabric. Big Fabric allows you to configure your network from a bird's-eye perspective, and the switches are automatically configured to reflect the configuration in the controller.

Many of these NOS are pitched as Software-Defined Networking (SDN) solutions. The most well-known SDN protocol is known as OpenFlow, where the control plane is offloaded to another device and tells the devices where to route traffic. These NOS enable SDN in a more general sense, by abstracting the low-level networking functionality behind remotely programmable APIs such as Big Fabric in the case of Switch Light, or Ansible/Puppet/Chef in the case of Cumulus Linux

Slide 4

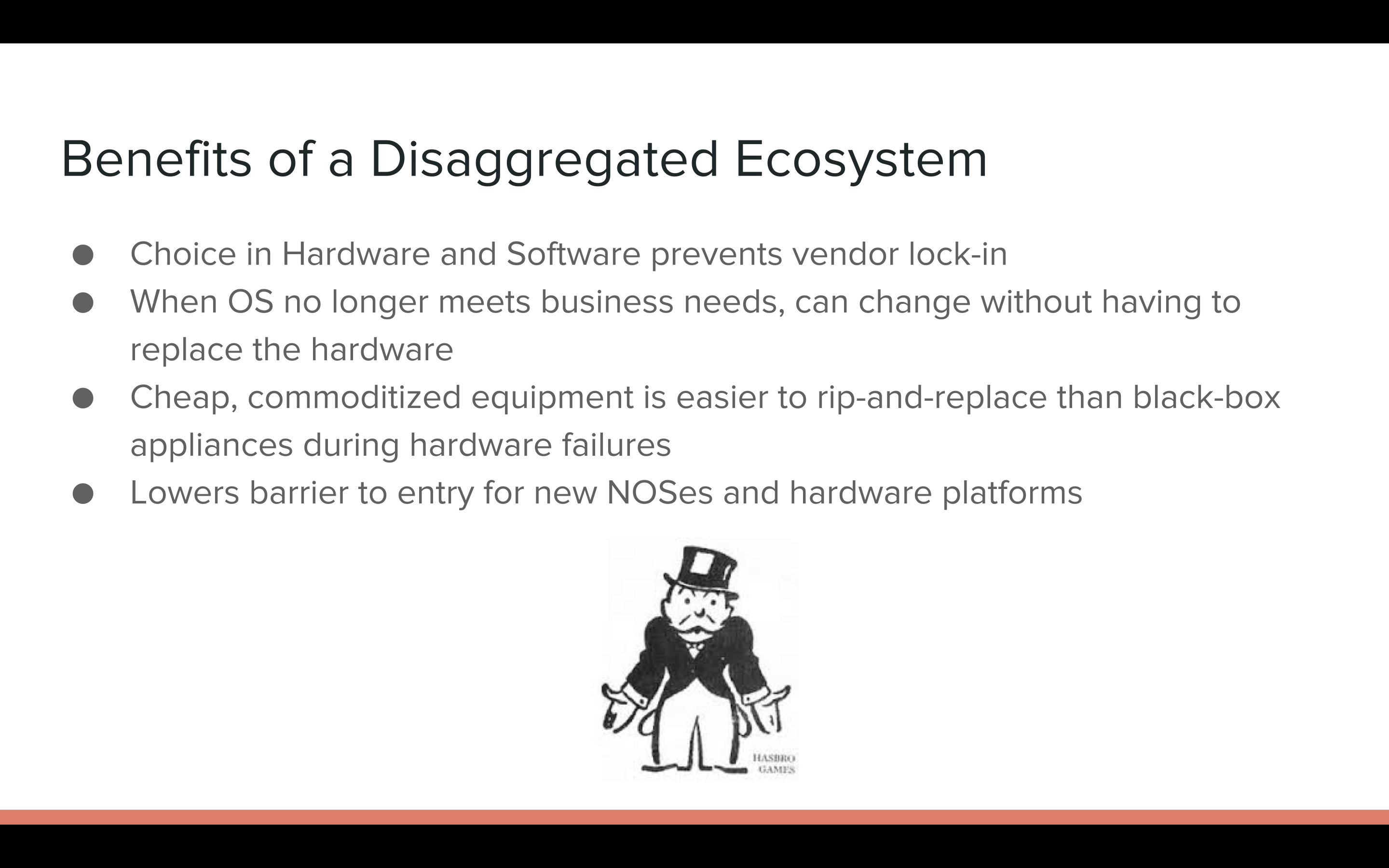

From a sales and procurement perspective, disaggregation of the hardware and software puts a lot of power in the hands of the customer. First of all, it allows a customer to force vendors to bid against each other. If a customer has a particular NOS they like, then they can make hardware vendors compete for support of that OS. If the software they are using no longer meets their requirements, they can try out new operating systems without having to throw away all of the physical equipment they already have.

Disaggregation is good for vendors too! Having a common base of popular hardware to build on lowers the barriers for a new NOS to enter the market, while at the same time having a set of popular network operating systems makes it easier for new hardware developers to get in on the action. Different vendors can compete on different dimensions, whether that's price, power efficiency, support, or features.

White box switches are often sold directly by the manufacturers, meaning that they come much cheaper than their branded counterparts. This means that it's much easier to keep hot spares, build separate testing infrastructures, and create more redundant networks when the budget may not allow for it otherwise. Much like servers these days, this turns switches from expensive appliances into commodities.

In fact, this new ecosystem is good for just about everyone except for established monopolies. :)

Slide 5

The Open Network Install Environment is the killer app of the white box switch. ONIE was originally developed by Cumulus Networks and was submitted to the Open Compute Project to be used as the de facto standard for open whitebox switches. ONIE is a minimalistic Busybox OS that comes factory-installed on OCP switches to facilitate the installation of NOS. ONIE is like a PXE, but with a lot more features and (in my opinion) much easier to configure and use.

Slide 6

Slide 7

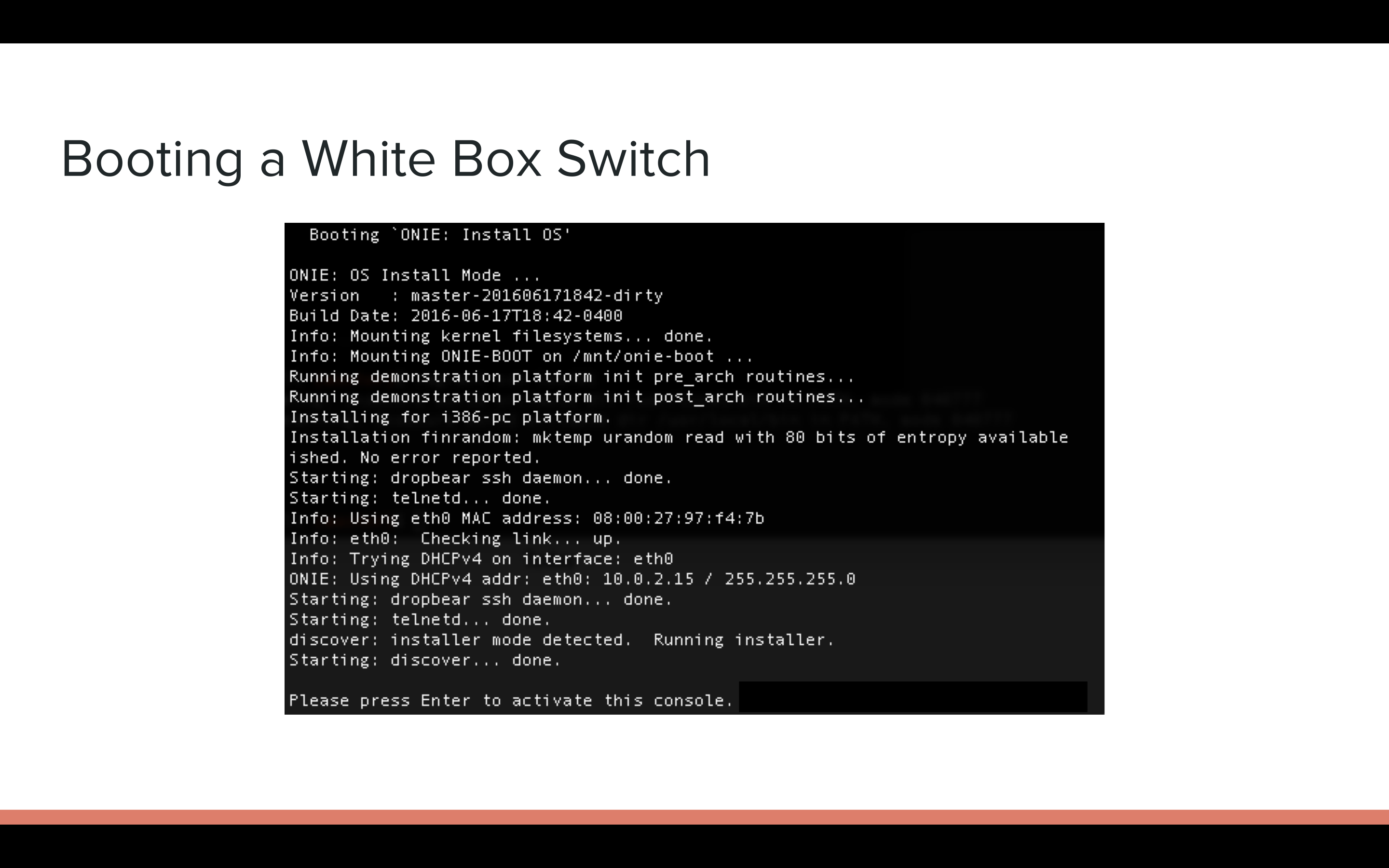

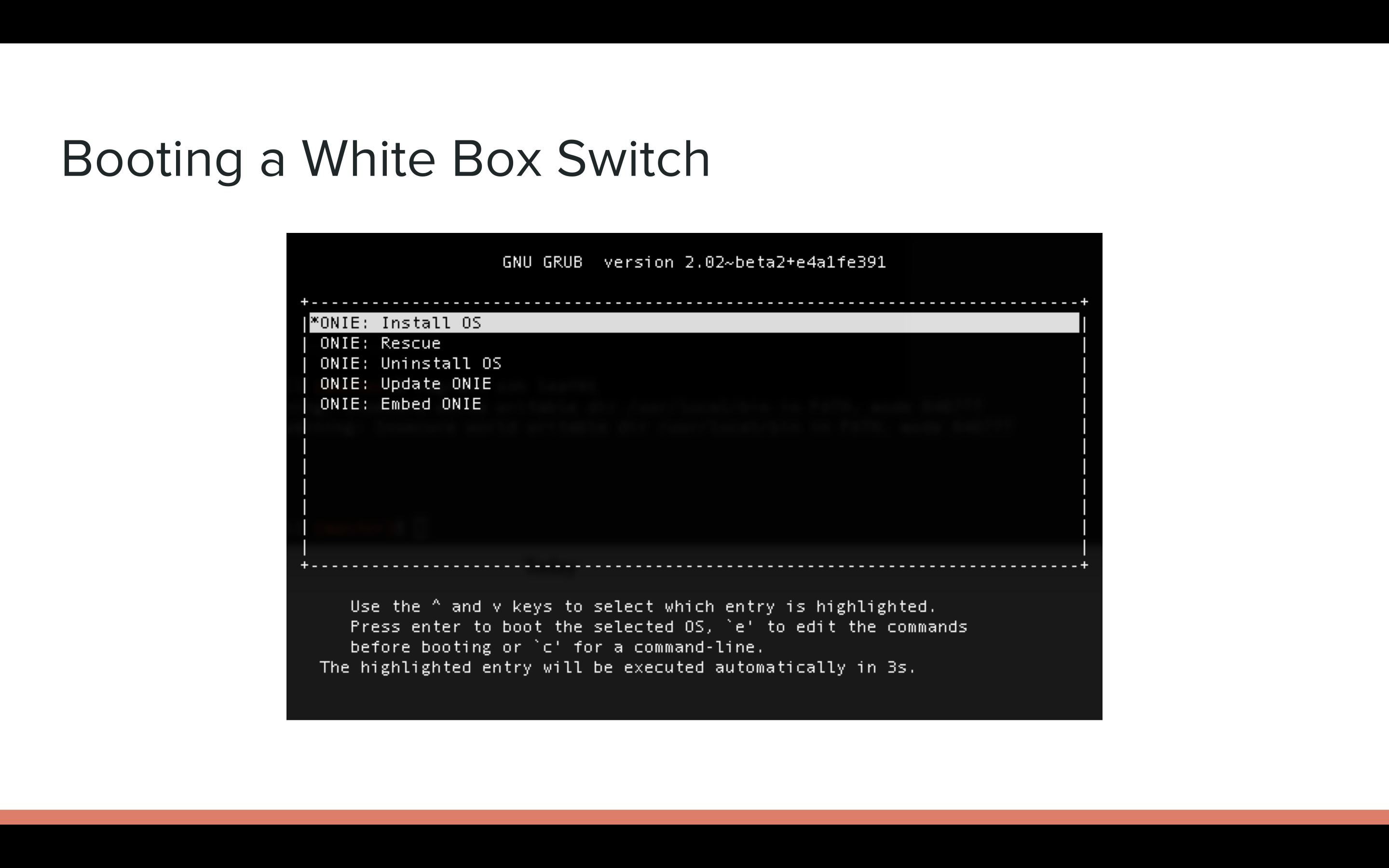

When you boot a white box switch fresh from the factory, you'll see something that looks pretty familiar. The grub bootloader is installed by default, and ONIE is the top OS. When ONIE installs a new NOS, it will update the grub bootloader to use it by default, and if you need to reinstall for any reason, you can just select ONIE Install Mode to do the whole process over again.

Slide 8

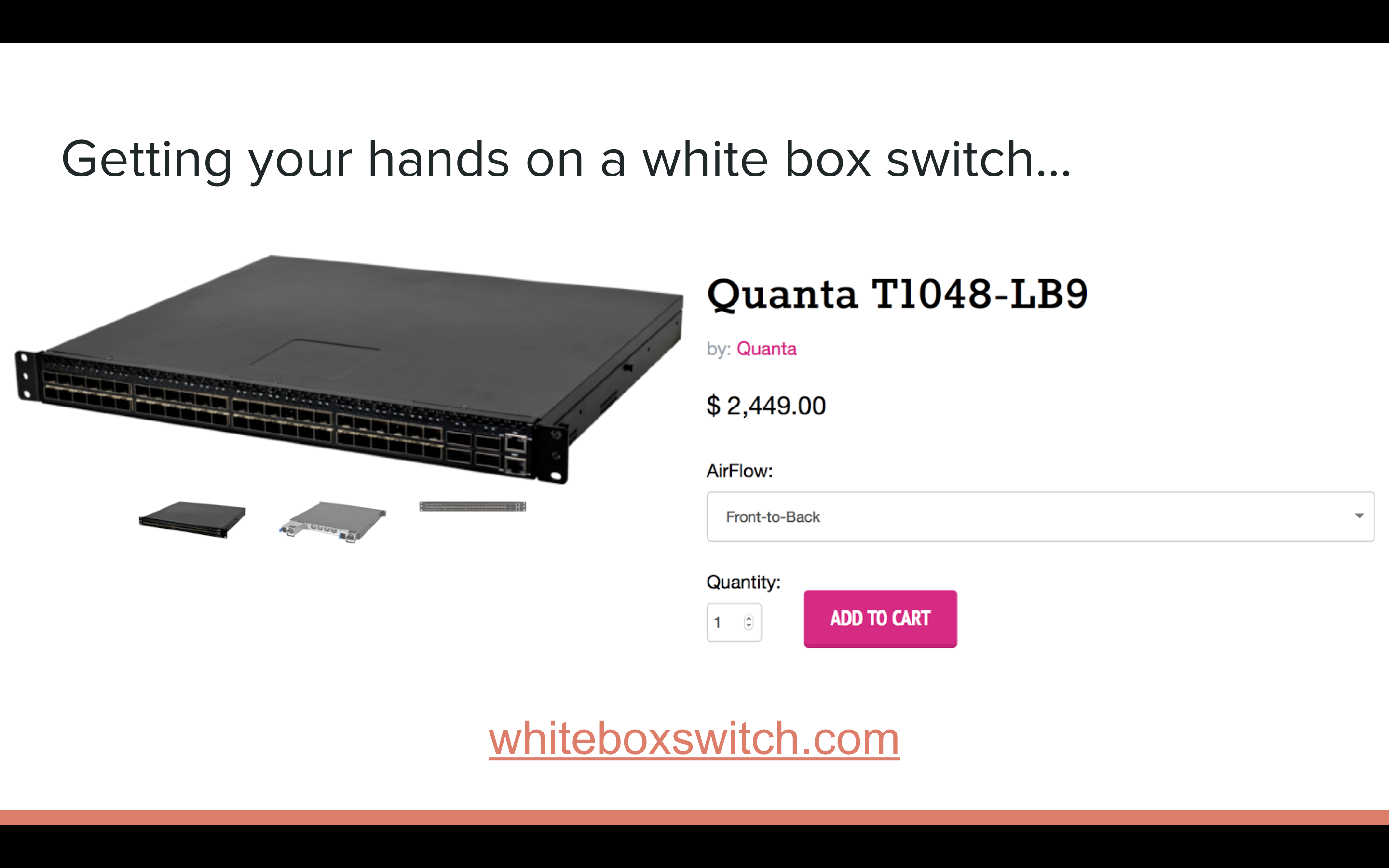

At this point, you're probably wondering how you can play with a switch like this. Like most enterprise gear, it's very difficult to order it without talking to a salesperson. Whiteboxswitch.com is a reseller that seeks to make purchasing white box switches and NOS transactional, but with a list price of close to $2500 for a low-end switch, this cost is prohibitive for most home users.

Slide 9

I took the ONIE ISO from the OCP's Github page and developed a modified version of it into a base box for Vagrant. Vagrant is an orchestration tool for VM deployment, which allows you to stitch together VM networks easily and repeatably. With this installation of just two programs, Vagrant and Virtualbox, you can run any of my examples and see what it's like to log into a brand new white box switch.

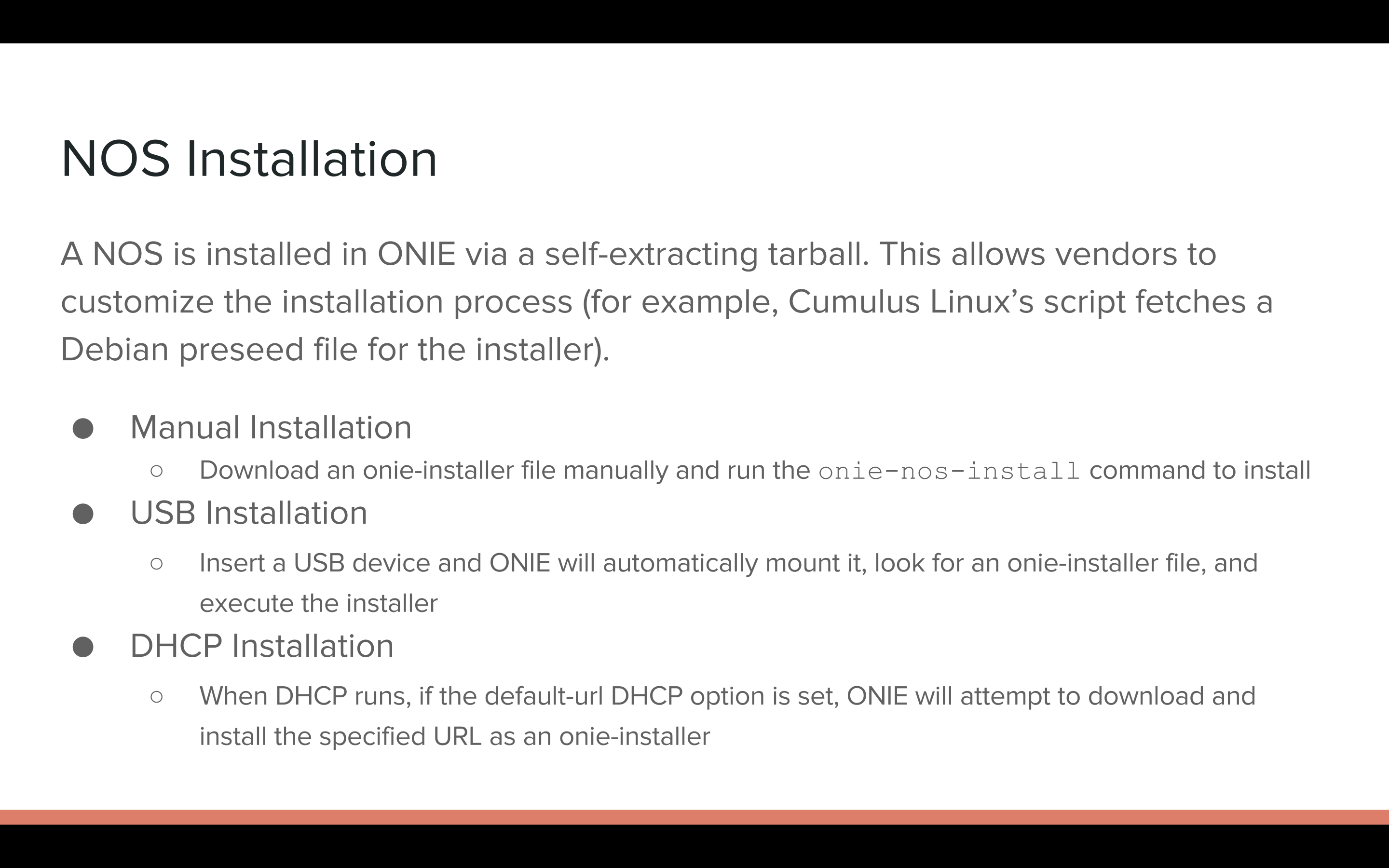

Slide 10

In this presentation, I demonstrate two of the three ways to install a NOS in ONIE.

The first way is manual installation. This is most useful when learning how ONIE works or troubleshooting a device, since it isn't scalable to do it in production. In ONIE, simply run the command onie-nos-install on an ONIE install image and watch as the installation takes place. The following video will show you that process in action. If you would like to follow along, you can find the steps in the onie-vagrant Github repository.

Slide 11

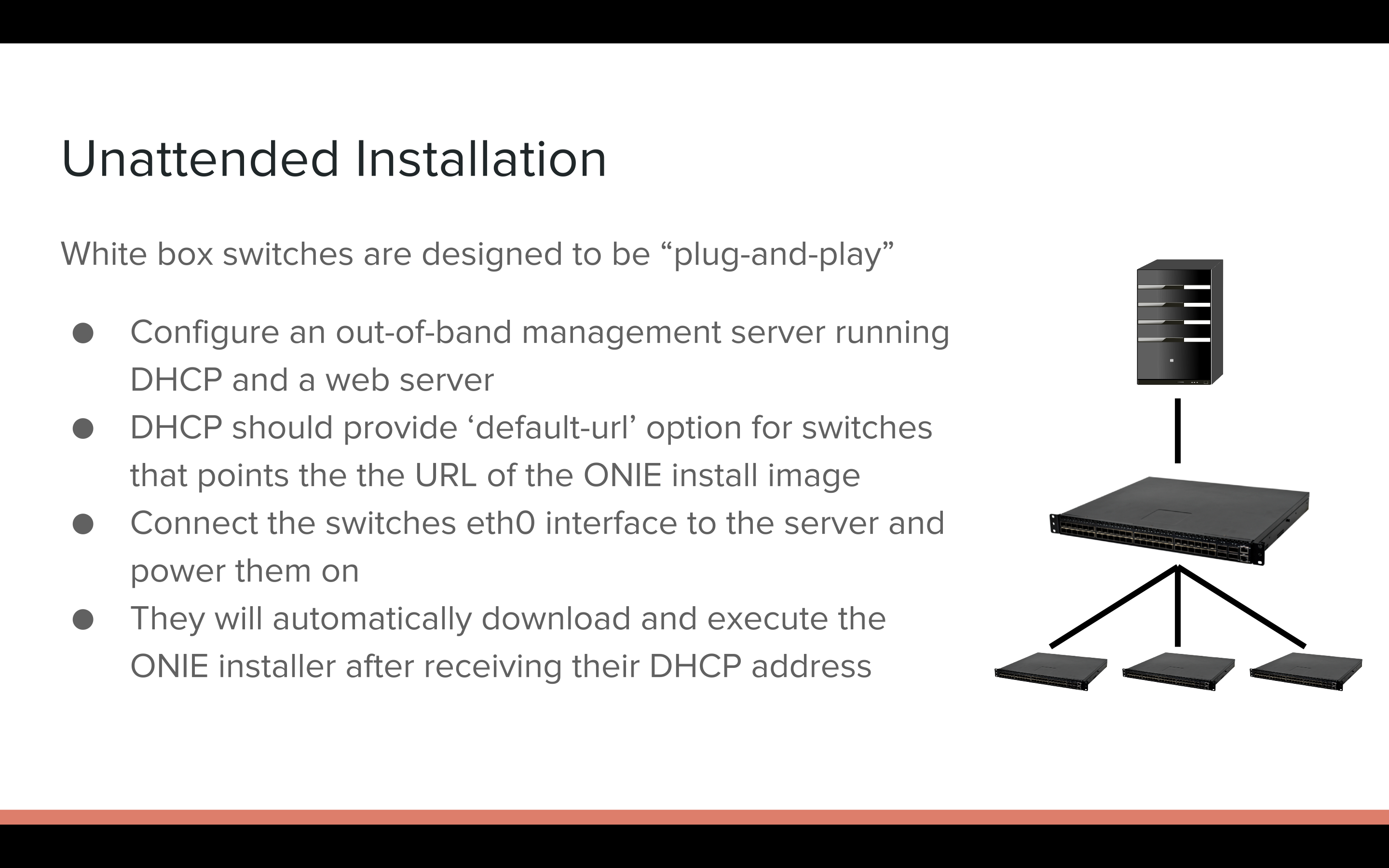

The second, and much more scalable approach to installation is the DHCP installation approach. This is part of a larger workflow called unattended installation, where you can simply plug a white box switch into your network, and it is automatically provisioned and configured by your automation infrastructure. All you need is a management server that runs DHCP and a web server such as Apache or Nginx, and set up DHCP to send the default-url option. When ONIE is in installation mode, it attempts to do DHCP over and over again until it finds that option, upon which it will then attempt to download and run whatever it finds there. I like to set up explicit DHCP hosts entries for each switch's mac address so that I can control their hostnames as well.

The nice thing about setting up this infrastructure is that it is super easy to do factory resets. Simply log into a switch, reboot, and pick ONIE install mode from the menu, and everything will be reinstalled for you. Another video of this demo is shown below, and you can follow along with the steps in the Github repo.

If you're paying attention, you'll probably notice the existence of a preseed file. Because Cumulus Linux is based on Debian, the Debian installer is capable of finding and running this preseed file to do configuration at install-time. I use the preseed file to create a Vagrant user and to configure the names of the front panel ports so that instead of being named eth15 and eth16, they are named swp31 and swp32. Preseed files are very helpful in the virtual case, but I would never recommend them in production since they are very picky and hard to debug.

Cumulus Linux has a feature called "Zero Touch Provisioning", which allows it to run a script the first time it boots, also retrieved by a DHCP option (in this case, vendor-specified option 239). ZTP is configured in this demo as well so you can see how it works. ZTP scripts are a more appropriate platform for doing configuration and other actions as well, such as user creation and license management.

Slide 12

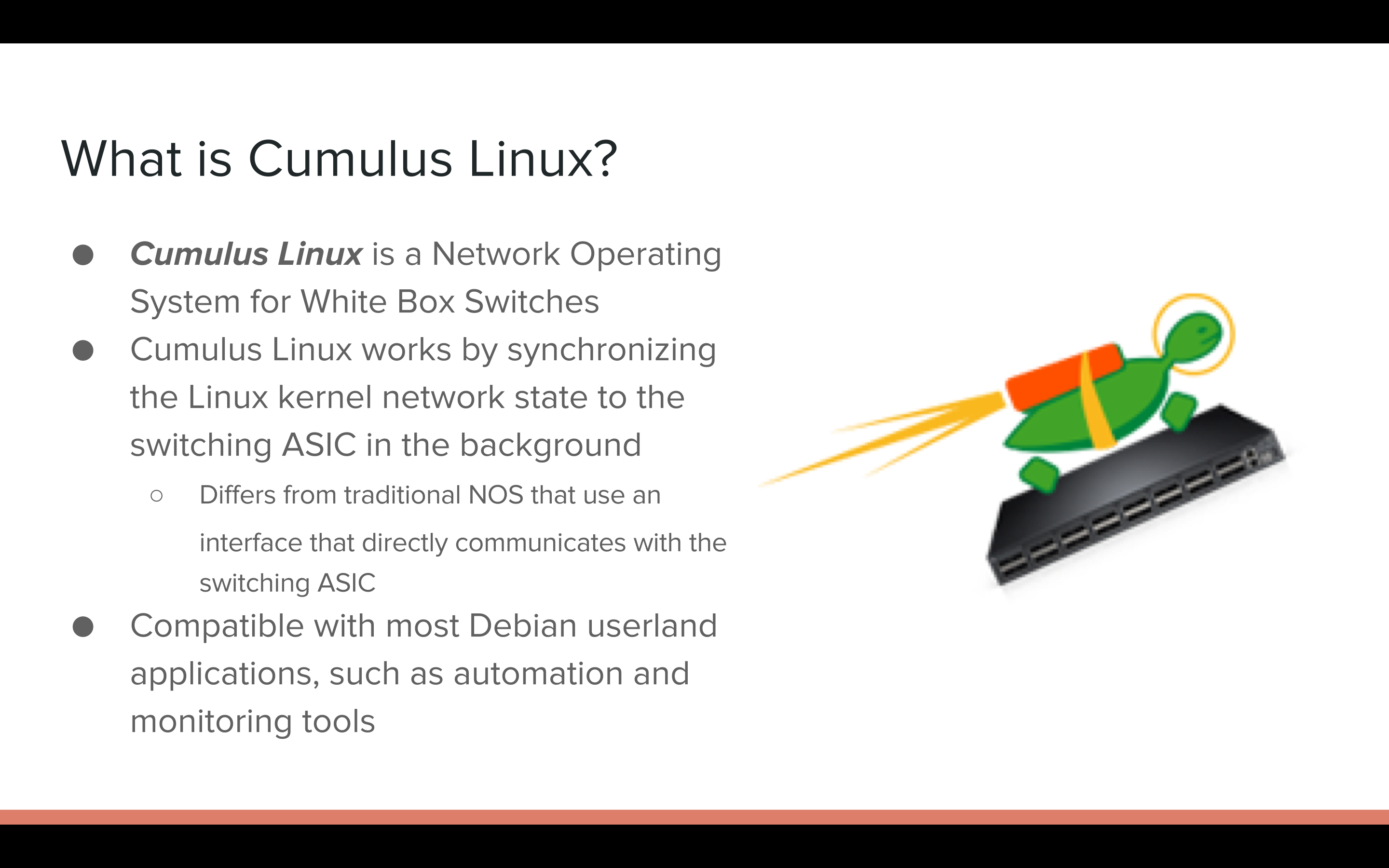

Cumulus Linux is a full-featured Network Operating system that seeks to create an authentic Linux experience on a switch. Linux is already a very popular environment in the data center as it is the language of choice for most servers, so by porting Linux to switches as well, we are able to create a unified environment for the entire datacenter.

This works via a proprietary daemon called switchd that runs in the background and monitors changes in the Linux kernel's network state and writes those changes to the ASIC for hardware acceleration.

Cumulus Linux is built on Debian, and is compatible with most userland Linux tools for automation, monitoring, and troubleshooting. In addition to being able to leverage an ecosystem of free and commercial software, administrators are able to bring their expertise and workflow from servers to the networking equipment as well.

Further, many of the changes in Cumulus Linux that have been implemented to improve the experience of configuring networks in Linux have been ported back to the upstream community for inclusion. This includes ifupdown2, as well as kernel upgrades for Virtual Route Forwarding (VRF).

Slide 13

Doing networking on Linux is not easy, and its amazing how spoiled I've become using the features made available through Cumulus Linux. ifupdown, for example, is notoriously difficult to use if you are doing anything more complicated than bringing up an interface. Aliases, post-up configuration, and exotic interfaces like bonds and bridges are all quite painful to use. ifupdown2 streamlines the configuration of the network, and also adds a smart reload that makes it possible to read the entire file but only touching the interfaces that have actually been altered, which is very important to avoid breaking traffic flows on production devices.

The real bread and butter of our work is in the Quagga suite of open source implementations of routing protocols.

We have developed and upstreamed multiple improvements to BGP and OSPF including performance improvements based on production use cases, and usability improvements by adopting common default values to reduce the amount of boilerplate configuration necessary for cookie-cutter configs.

Slide 14

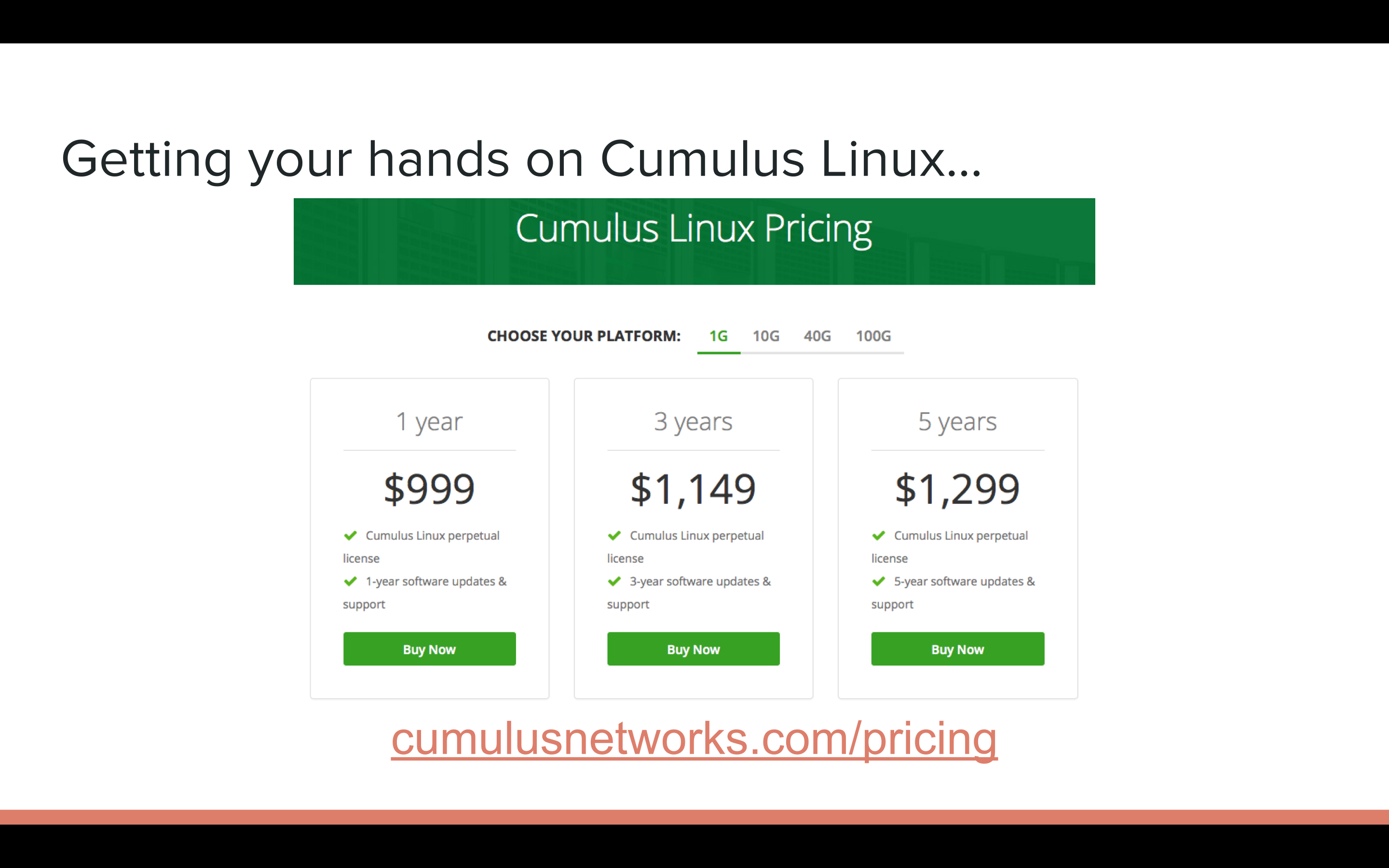

Cumulus Linux is an enterprise product, so we license it to cover the cost of 24x7 support. However, if you want to play with it on your own, you are not out of luck!

Slide 15

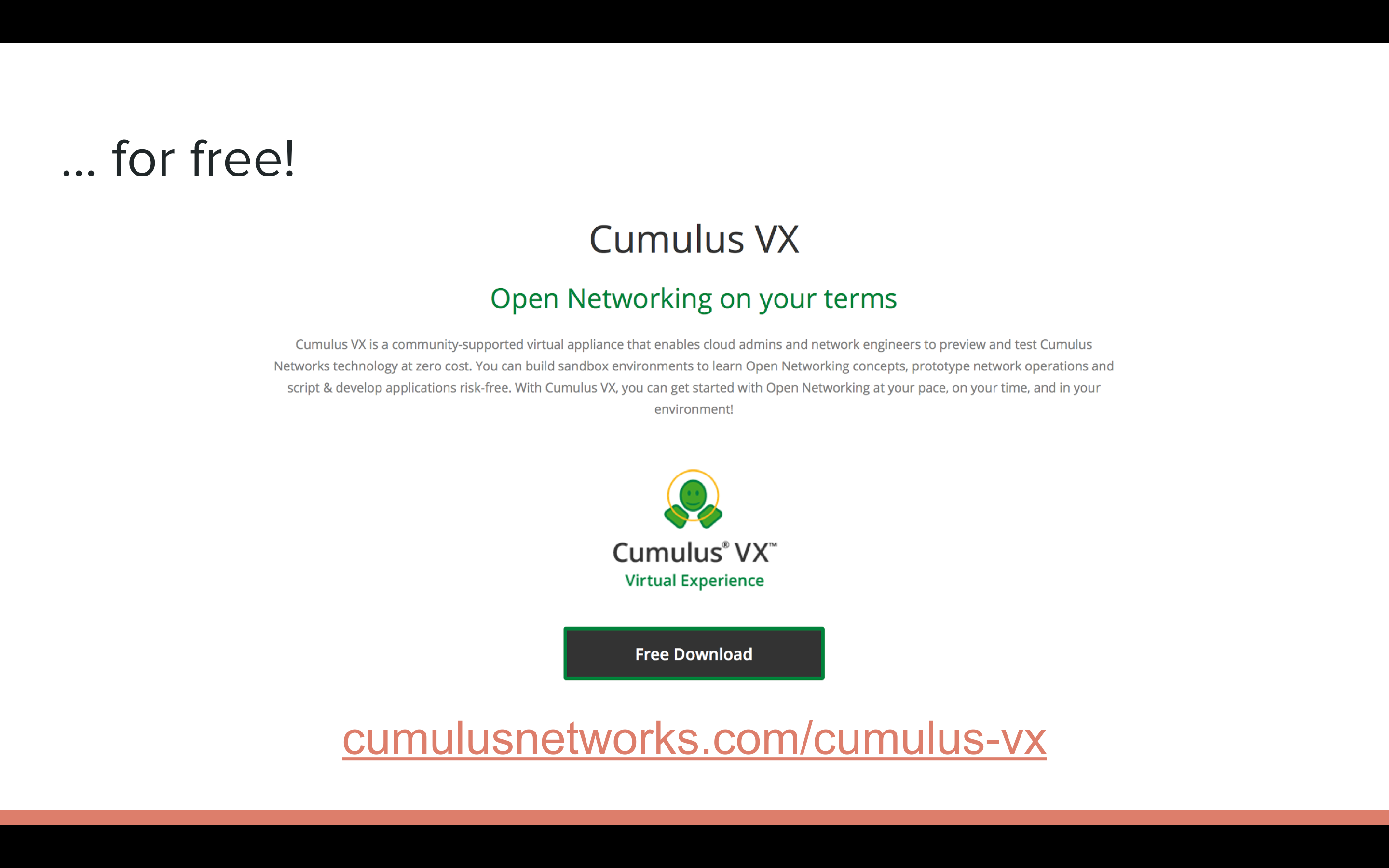

Cumulus VX is our freely-available Virtual version of Cumulus Linux. Since VMs don't have switching ASICs, we can just take a Debian VM, replace the repos, and install our own open source software to faithfully simulate the Cumulus Linux environment. Cumulus VX also has an ONIE install image that is compatible with the Vagrant box I introduced earlier in the presentation, meaning it's possible to replicate the entire bootstrapping environment as well.

Cumulus VX isn't just a stripped down version of Cumulus for tire-kicking. We have customers who actually use VX to create virtual simulations of their entire production network to stage changes before pushing them live. I gave a presentation on virtualizing an entire datacenter and the benefits that come with that.

This next video shows off what it's like to configure networking between two Cumulus devices. If you're familiar with ifupdown, you may notice some slight differences in ifupdown2.

Slide 16

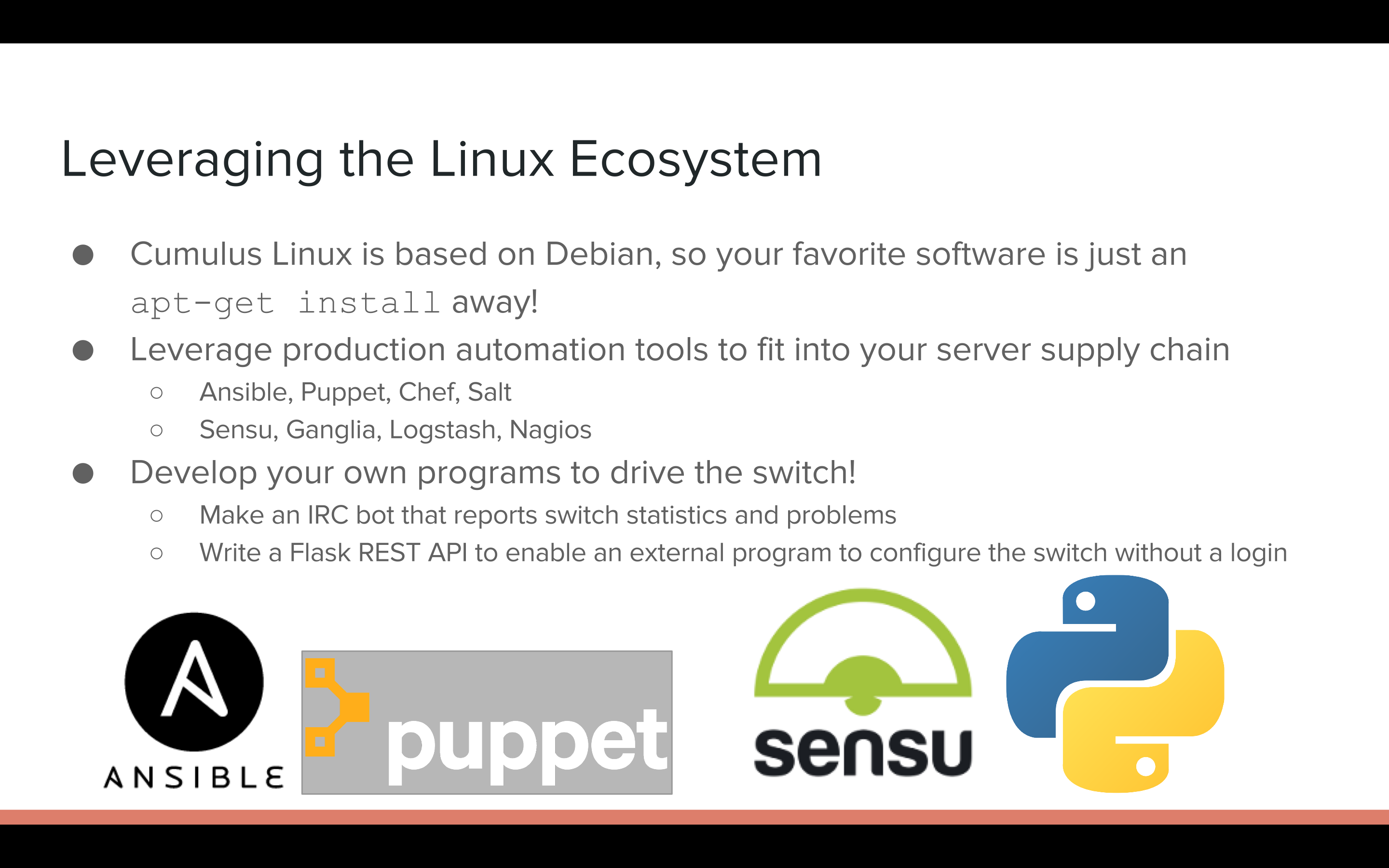

However, as I've mentioned, part of what you get when you choose Cumulus Linux is access to the entire ecosystem of DevOps tools, such as Ansible, Puppet, Chef, and Salt. Part of our goal is to bring the DevOps workflow to the network, and we did that by making the network speak the same language as everything else.

As a programmer, I also enjoy that because the switch is now just a Linux server, the possibilities for developing applications on top of the platform are endless. If you need a REST API for your switch, you can just install and run a Flask webserver and set up some Python endpoints that call the ip commands. Or you can create some common tasks and map POST requests to Ansible playbooks.

It's not enough to just do what the incumbents do. We need to do more, better, with less. Below is the video of the demo I showed during my last talk, where I use Ansible to configure BGP on a CLOS topology. Because I work on fresh virtual networks every time I do configuration, I can provision and extend my networks quickly and reliably.

Slide 17

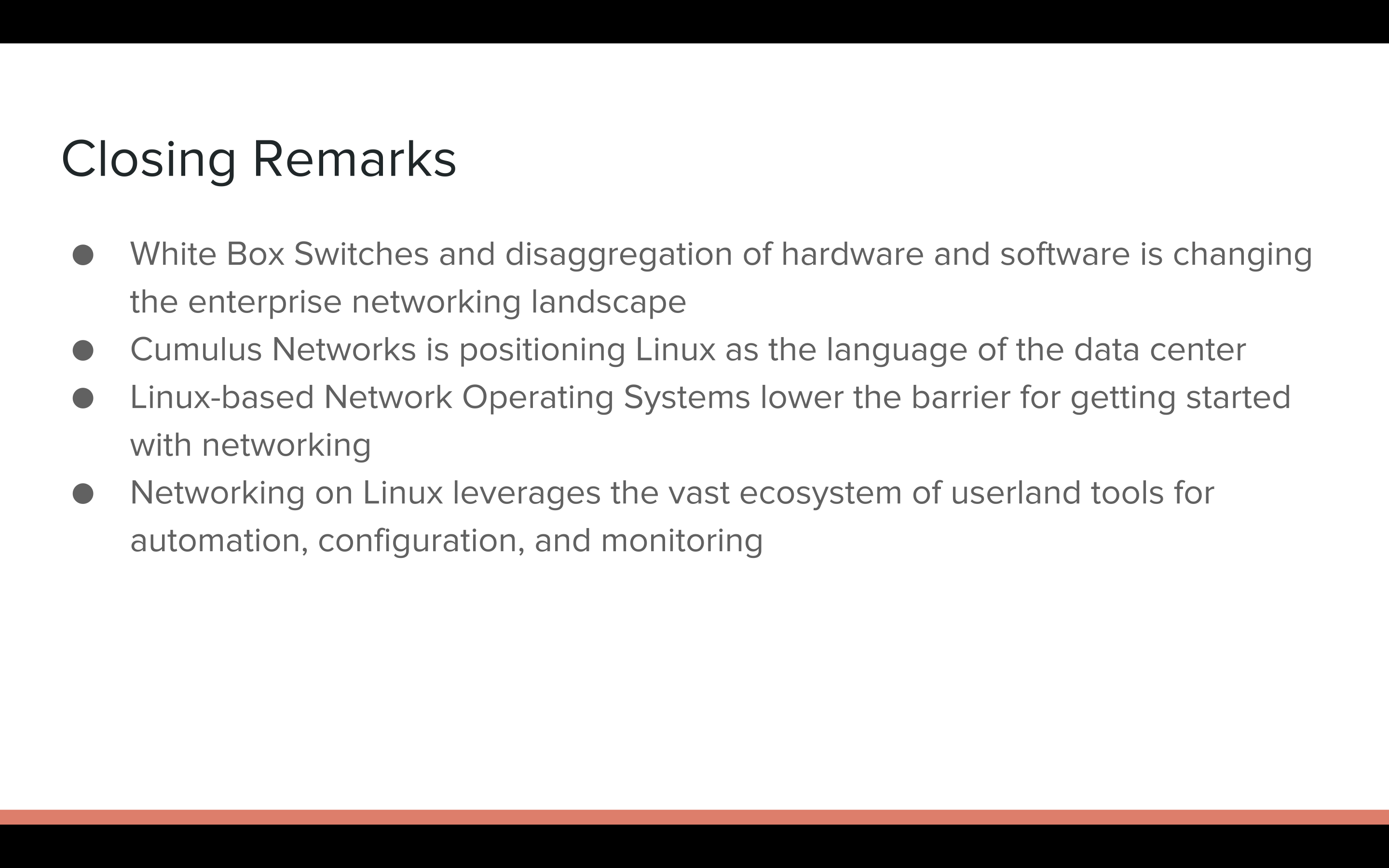

The key takeaway here is that white box switches have set the stage for Linux to take over switches the same way it took over servers. By making Linux the unified environment for the entire datacenter, we can leverage an ecosystem of skilled developers and administrators to advance whole datacenter solutions. For example, Cumulus Networks' recent release of Routing on the Host took a piece of software we were originally running on our switches and moved it back to the servers in a way that closed the gap between compute and network.

So if you have a Linux background and have always wanted to try to learn how to do networking, there's never been a better time than now.
